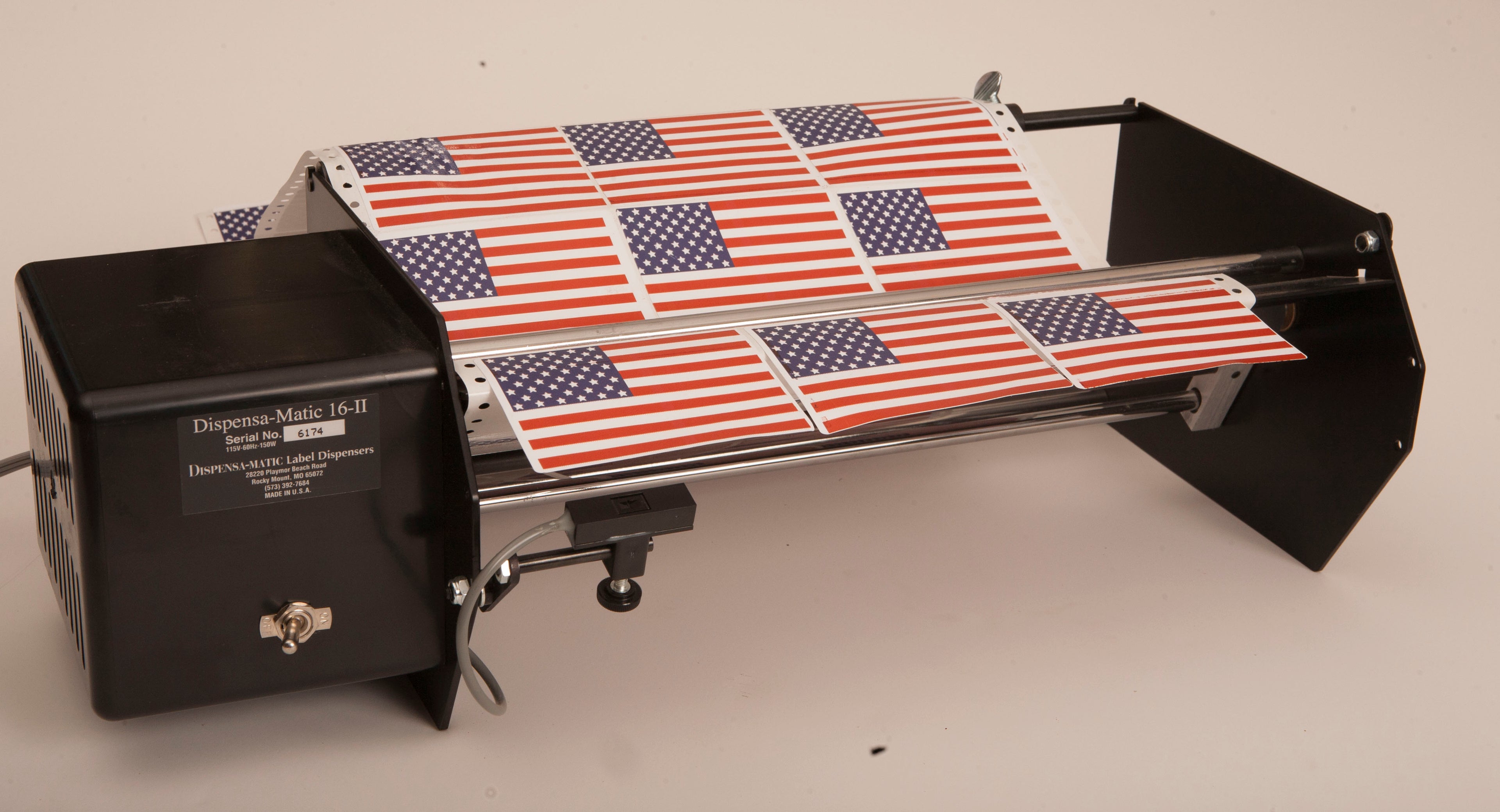

Dispensa-Matic 16-II

Photo Eye (Most Common)

$1,150.00

Dispensa-Matic 16-II

$1,150.00

Dispensa-Matic 6-II Great for roll or fan-fold labels up to 15" in width.

Best for large diameter rolls, and where constant speed is needed. 5" per second advance, with the photo eye.

USA: 1-800-325-7303 | International:+1-573-392-7684
MADE IN USA | 3 Year Warranty!

Dispensa-Matic DM-II Label Dispensers: are heavy-duty semi-automatic electric label dispenser for labels from 2″-15″ widths x any length. This label dispenser advances at over 5″ per second. DM-II machines are specifically designed not to wind up waste paper. This allows the user to dispense rolls up to 15″ Diameter (large roll adapter) without changing the waste! Loading is a “snap”, just feed the labels between the dispensing tables then through the patented feed-roll assembly and “snap” into place.

All DM-II are:

Best for roll or fan-fold labels
Best for large diameter rolls, and where constant speed is needed
Does not wind up waste
Two types of label sensing options, Photo Eye Detector, and Physical Detector
Butt cut, or die cut compatible!
Semi-Automatic dispenser, pick, apply, and repeat.
Label Circuit boards, PCBs, small bottles, bags, ICs, or anything that needs a small label.
Full 3 Year warranty, including parts and labor.
If repair is ever needed we offer a 1-Day turn-around!

In house manufacturing, you know you will get support when you buy Dispensa-Matic.

Made in the USA

3 year Warranty

All Metal Frame & Rods

We strive to process and ship all orders in a timely manner, working diligently to ensure that your items are on their way to you as soon as possible. If your item is in stock, our shipping time is typically same day, or next day.

We are committed to ensuring a positive shopping experience for all our customers. 21 Day Trial is offered on all units. Limit one per customer. Payment to be made by credit card. Full refund less shipping and credit card fees will be issued once machine has been received back in like-new condition.

Sensor Comparison: Photo Eye vs. Micro-Switch

Specifications

In house manufacturing, you know you will get support when you buy Dispensa-Matic. Dispensa-Matic U-25 is always In-Stock and ready to ship

Sensor type Photo-Eye or Micro-Switch
DispensingTables Formed out of stainless. The peel edge is hand shaped to spec by our 20+ year machinist to get that perfect peeling edge needed to dispense labels without tearing the backing paper. Dispensing tables are POLISHED with ultra-fine polishing compound so paper flows freely around the plate.
Label Size 2" - 14" Wide for Rolls, or 2" - 15" for fan-fold
Label Core Size 3"
Maximum Outside Diameter 9" OD
Label Material Compatibility Butt cut, or die cut. Mylar, foil, holographic, transparent, or any other thin label stock.
International compatibility We use motor specifically for Europe and all other 220V 50/60hz, (no cheap 12v DC motors here)
The DM-II motor Shaded pole AC motor, and is also made in the USA to our specifications. (No CHEAP 12v motors here!)

Compare Automatic Label Dispensers

Features	Dispensa-Matic U-25 $575.00 View product	Dispensa-Matic U-45 $695.00 View product	Dispensa-Matuc U-60 $795.00 View product	Dispensa-Matic 6-II $950.00 View product	Dispensa-matic 10-II $1,050.00 View product	Dispensa-Matic 16-II $1,150.00 View product
Label Width Size	3/8" to 2 1/2"	3/8" to 4 1/2"	3/8" to 6"	2" to 4"	2" to 8"	2" to 14"
Rewinds backing paper	✓	✓	✓	✕	✕	✕
Speed	6" Per Second	6" OR 11" Per Second	9" Per Second	5" Per Second	5" Per Second	5" Per Second
Weight	8 Lbs	11 Lbs	13 Lbs	15 Lbs	16 Lbs	19 Lbs
Dispenses Multiple (same size) labels on the same backing paper	✕	✕	✕	✓	✓	✓
