Original Bottle-Matic 10"
$1,995.00
Skip to product information
Original Bottle-Matic 10"
$1,995.00
USA: 1-800-325-7303 | International:+1-573-392-7684
MADE IN USA | 3 Year Warranty

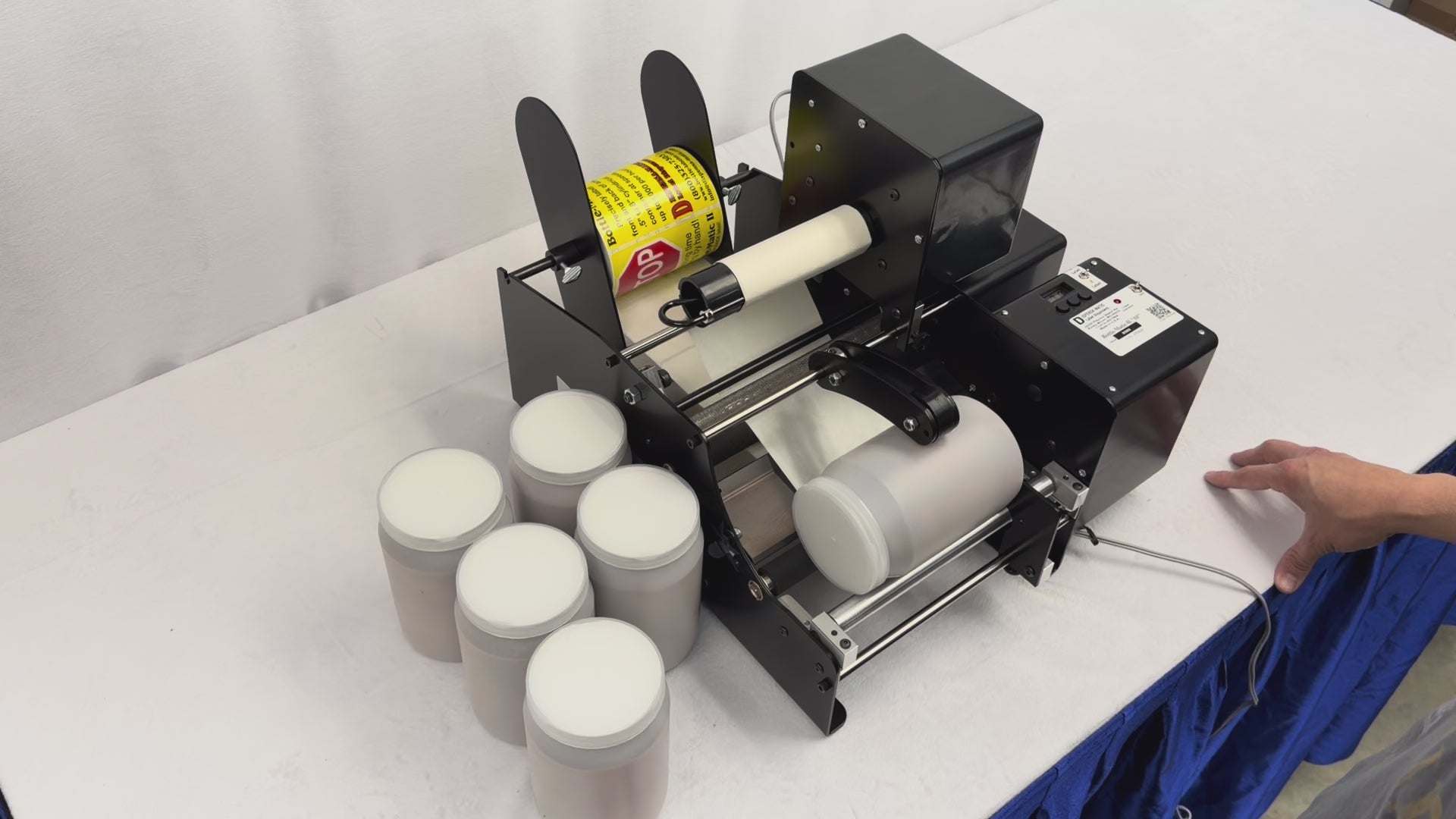

The Bottle-Matic 10″: is designed for cylindrical items from .5″ – 6″ in diameter, and from 1 1/2″ – 9″ in container height.

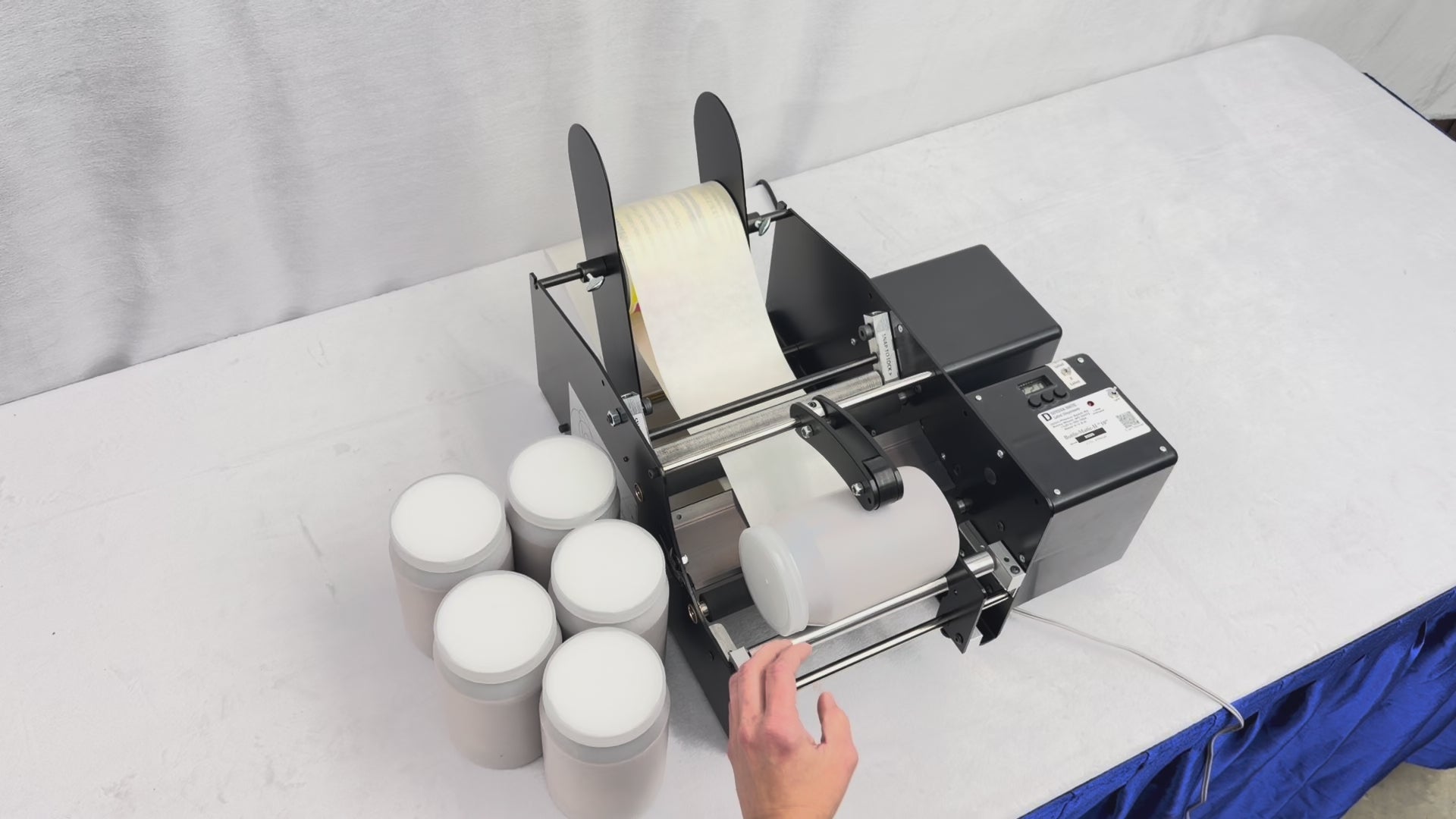

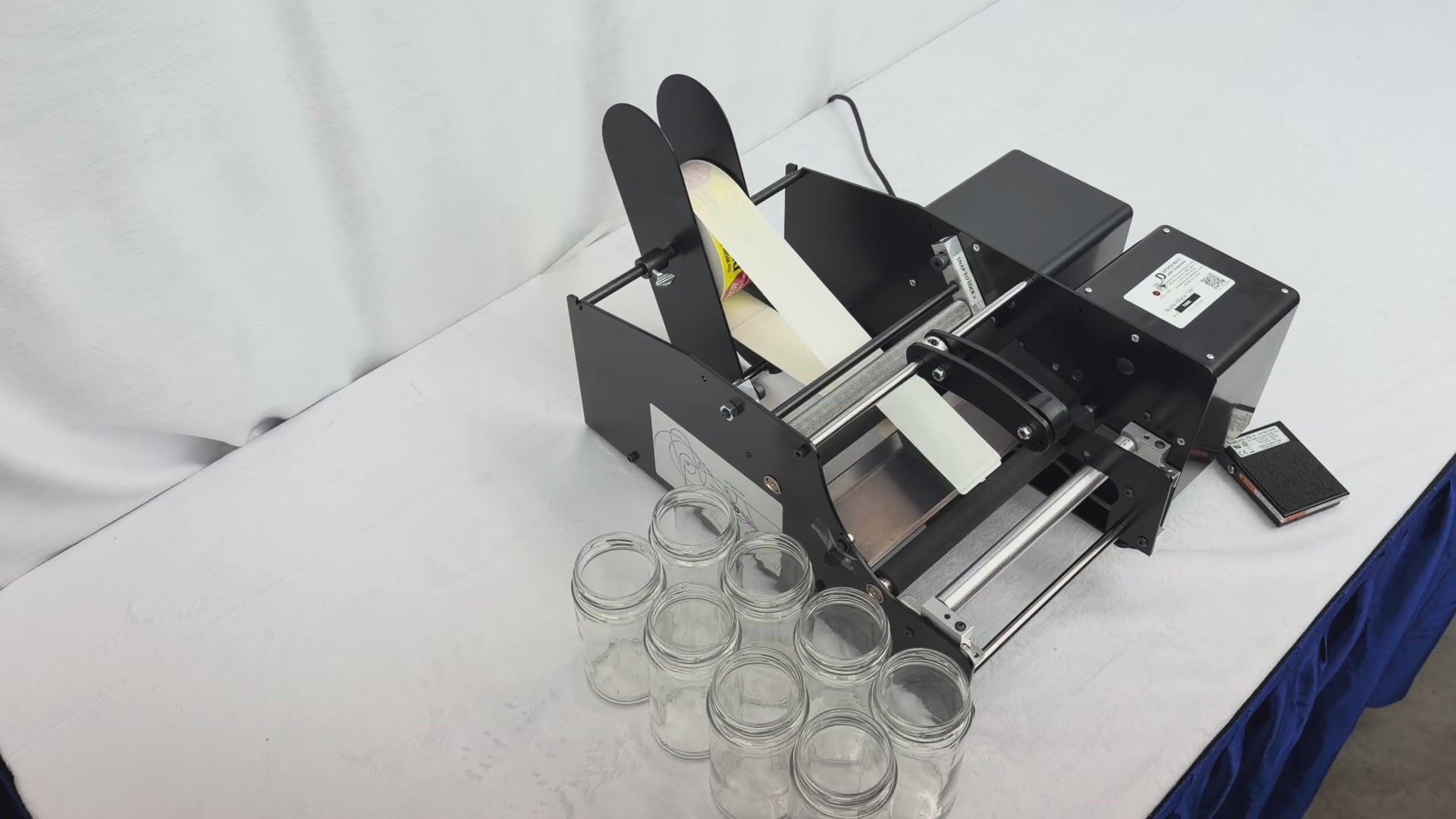

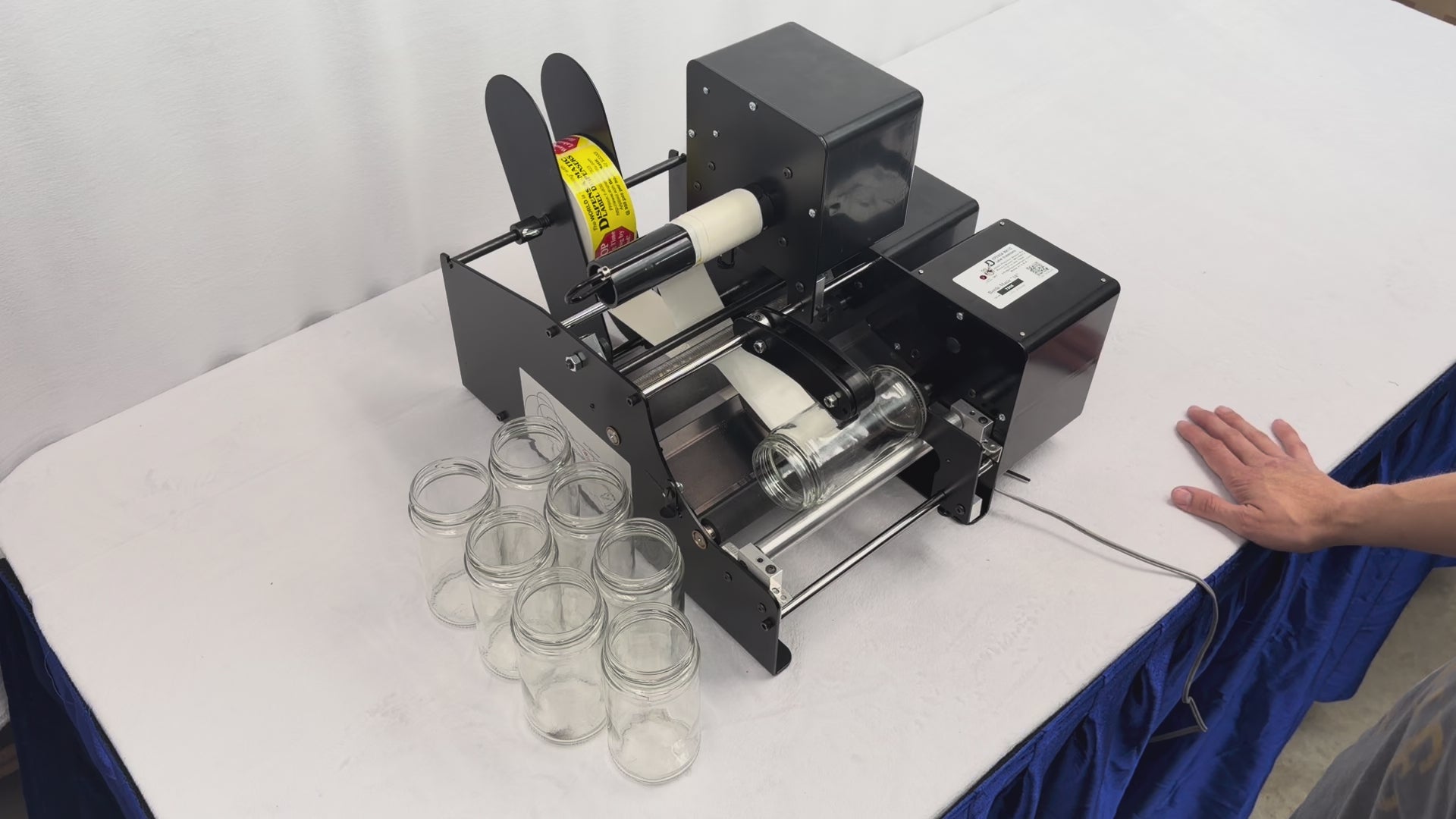

The Bottle-Matic Label Applicator enables the user to label all kinds of cylindrical objects by simply inserting the container and pressing a foot switch. Once the foot switch is activated the label is applied at over 4.5″ per second.
PRIOR TO ORDERING: It is recommended that you send in sample containers, and a roll of labels in for testing. We will provide a video with your product and labels in a real world test. If interested in sending in test samples please call or email: Info@dispensamatic.com so we can provide instructions on how to do so.
Optional Add-Ons:

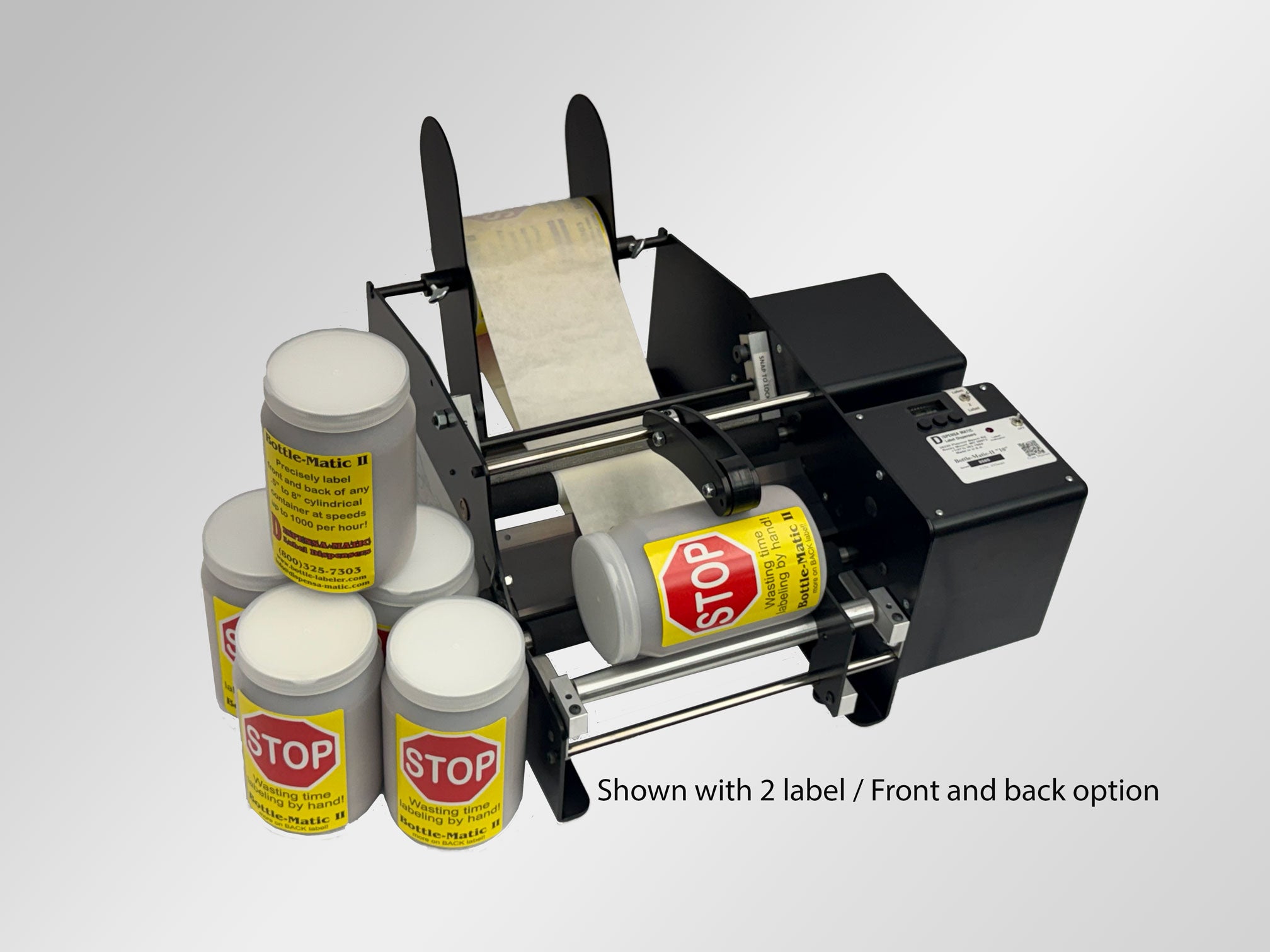

2 Labels, Front and back: This option applies both a front and back label to your cylindrical container

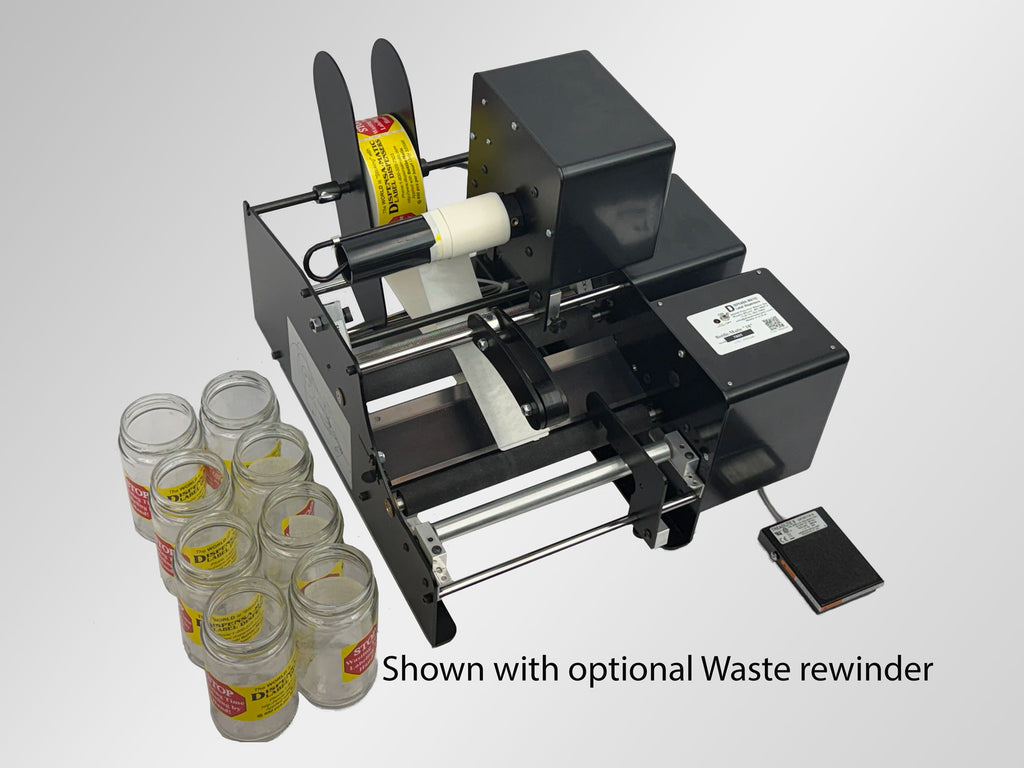

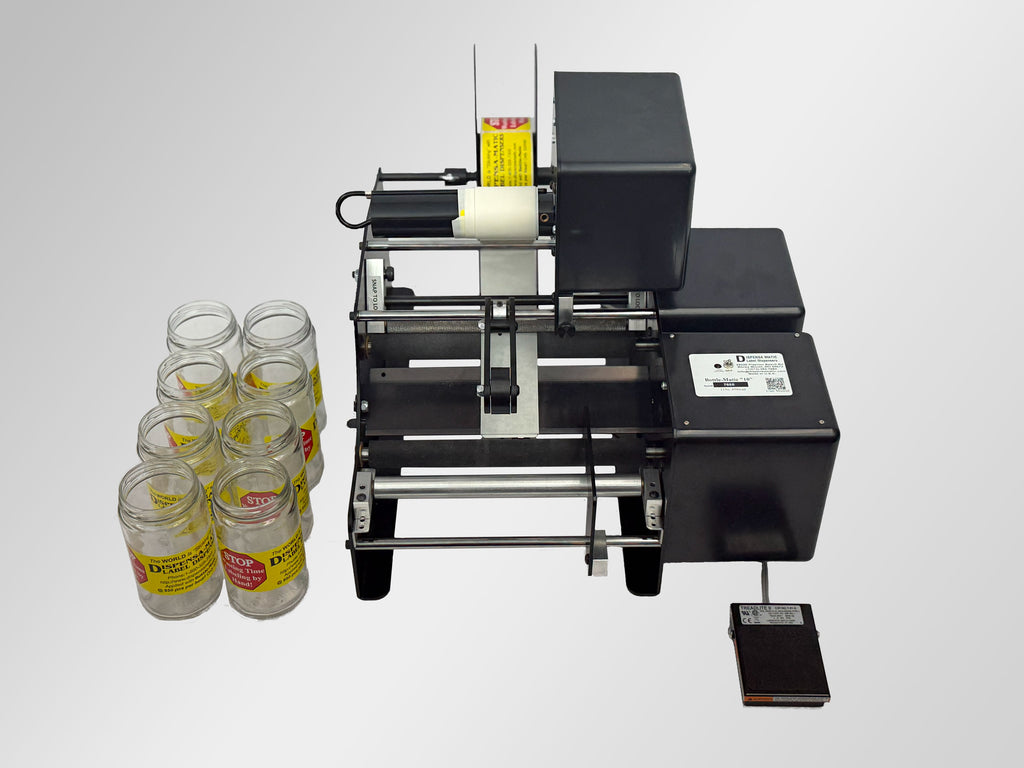

Waste-Rewinder- : This option automatically rewinds the waste paper that is produced after labeling your product. Without this attached the waste paper would simply fall over the back of the machine and into a waste bin.

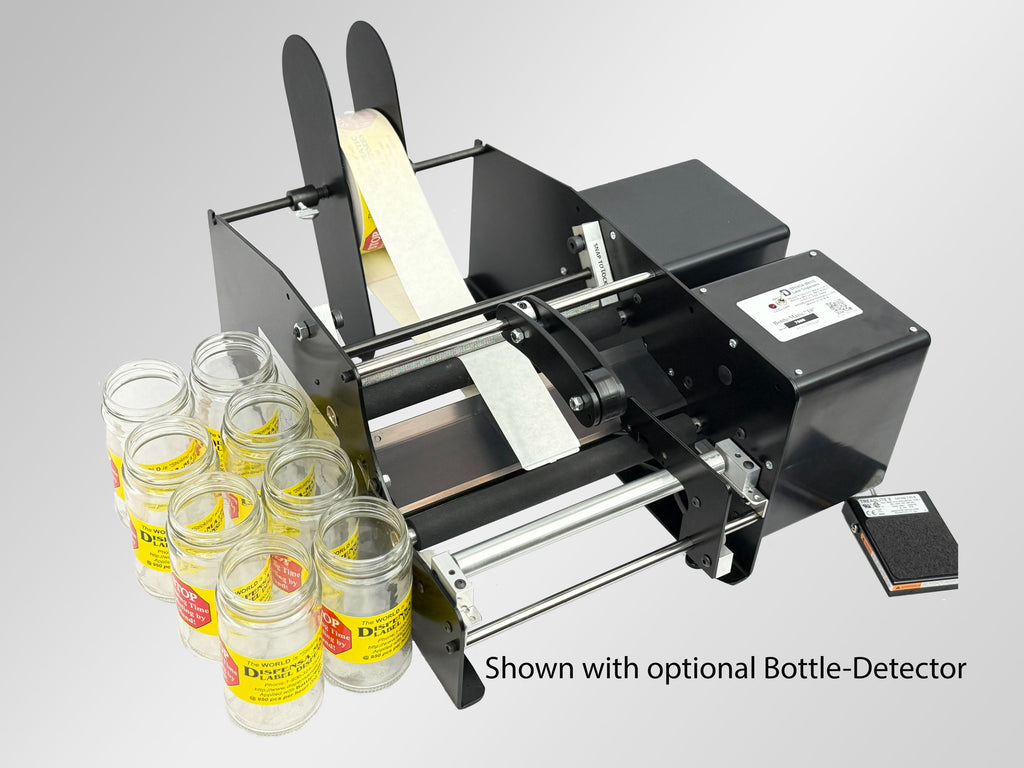

Auto-Matic- : This labeling option allows you to just insert your bottle and the labeler automatically activates. Foot switch is still included, but not needed!
Bottle-Counter- : This option counts each operation with a digital counter.
Laser Alignment tool: This points a directional red-dot laser to a specific point on your bottle- allowing you to alighn this same portion of the bottle with the laser to ensure the same label orientation placement each time. For example if you would like to avoid the label being applied on the seam of the container, or if you needed the label applied to match up to another item on your bottle.
Extended Heavy weight pressure arm: This pressure arm replaces the standard pressure arm that comes on the Bottle-Matic. This pressure arm is a heavy arm that helps eliminate bubbles. Primarily used for containers with inconsistent label surfaces and thin labels.
Shipping & Returns
We strive to process and ship all orders in a timely manner, working diligently to ensure that your items are on their way to you as soon as possible. If your item is in stock, our shipping time is typically same day, or next day.
We are committed to ensuring a positive shopping experience for all our customers. 21 Day Trial is offered on all units. Limit one per customer. Payment to be made by credit card. Full refund less shipping and credit card fees will be issued once machine has been received back in like-new condition.
Specifications
DON’T BE FOOLED! Know your getting the REAL DEAL with Bottle-Matic, we designed the machine from the ground up! (Not imported, or knock-off). Dispensa-Matic Label Dispensers pride in ORIGINATION! While others copy our technology and designs, we continue to be in the forefront bottle label applicator design.
- Box Dimensions 21 x 19 x 11 inches
- Weight 32 lbs
- Accuracy Holds 1/64th” side-side accuracy on most containers.
- Speed 4.5" per second - Over 1200 pcs per hour with average dexterity on a 2 1/2" dia. container (more if you have a fast employee).
- Sensor type Physical trigger into optical sensor activated, will work with most kinds of labels.
- Side frames Laser-Cut from the drawing quality steel then formed, countersunk, de burred, and inspected one at a time at our facility.
- Dispensing Tables Formed out of 6061-T6 Aluminum. The peel edge is hand milled to spec within .001″using a special hand-made cutting tool to get that perfect peeling edge needed to dispense labels without tearing the backing paper. (50 years of perfecting the peeling action) Dispensing tables are POLISHED with ultra-fine polishing compound so paper flows freely around the plate.
- Motors Bottle-Matic uses DUAL AC shaded pole gear motors, made in the USA, to our specifications
Compare Label Applicators
| Label Applicators | ||||||
|---|---|---|---|---|---|---|
| Type of label applicator | Cylindrical / Bottles | Cylindrical / Bottles | Cylindrical / Bottles | Flat / Bags (Less than 1/4" thick) | Flat / Bags (Less than 1/4" thick) | Any surface over 1/4" thick |
| Comes with waste rewinder (no additional cost) | ✕ | ✕ | ✓ | ✓ | ✓ | ✓ |
| Type of label sensor | Physical Sensor | Physical Sensor | Optical sensor | Physical Sensor | Optical sensor | Optical sensor |
| Labels Applied | 1 or 2 (front and back) | 1 or 2 (front and back) | 1 or 2 (front and back) | 1 at a time | 1 at a time | 1 at a time |
| Container Height requirement | 1.5" - 9" | 2" - 15" | (10" version 1.5" - 9") (16" version 2"-15") | Anything Over 1.5" | Anything Over 1.5" | 1/4" - 4 1/2" with use of pressure arm (1/4" + without pressure arm) |
| Container Diameter limitation | 1/2" - 6" dia. | 1/2" - 6" dia. | 1/2" - 8" dia. | N/A | N/A | N/A |
| Country of Manufacture | USA | USA | USA | USA | USA | USA |
| Warranty | 3 Years | 3 Years | 3 Years | 3 Years | 3 Years | 3 Years |
